Chemical Type (Desiccant) Air Dryers

Compressed air contains oil, solid particles, and water vapor. Together, they form an abrasive, often acidic, and oily waste. When not conditioned, this murky mixture enters the compressed air system, causing corrosion in the pipe installation, damaging pneumatic tools, and reducing the quality of end products.

  • Non-heat using dryers use only compressed air for drainage.
  • Blower-purged dryers use external air, heat, and a minimal amount of compressed air for drainage, provided by an external blower.

Our desiccant air dryers BD+ and CD+ adapt their energy consumption based on the current load, thanks to dew point sensing and control features. The pressure loss below 0.2 bar reduces energy costs, allowing significant savings.

Maximum Energy Savings

The GA series compressors with the "Plug and Play" concept are highly compact. They come in different versions, including integrated dryers or dryer-less models. The Electronikon® control unit provides advanced monitoring and control functions.

Easy Installation and Operation

The use of high-quality desiccant materials can double the lifespan of your system compared to standard activated aluminum oxide. The stainless steel valve significantly extends your service intervals, reducing production downtime and maintenance costs.

Extended Maintenance Intervals

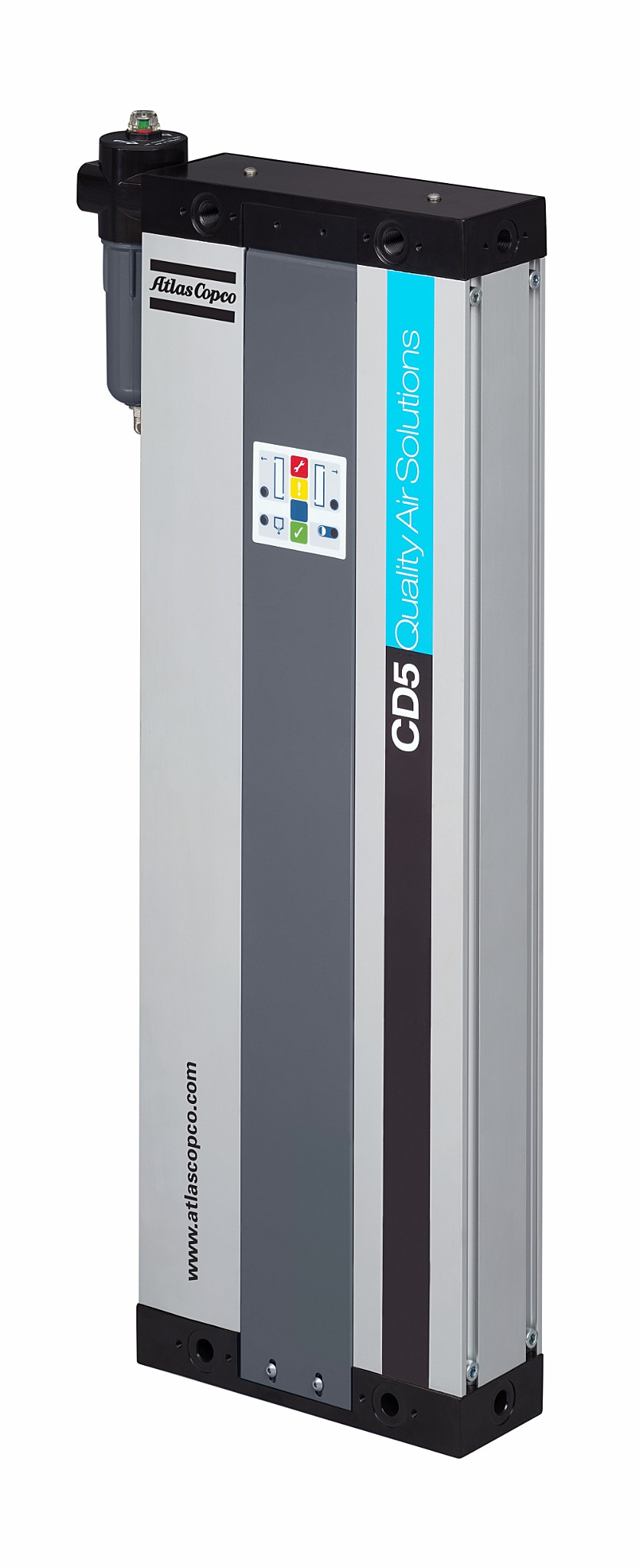

    Heatless Desiccant Dryer CD/CD+

  • -20°C and -40°C dew point.
  • Capacity ranging from 1 to 300 l/s.
  • Exhaust air 16% to 19%.
  • Electronikon® control module.
  • "Plug and Play" with silencers and filters.
  • Optional PDP control.
  • Cost-effective initial investment.

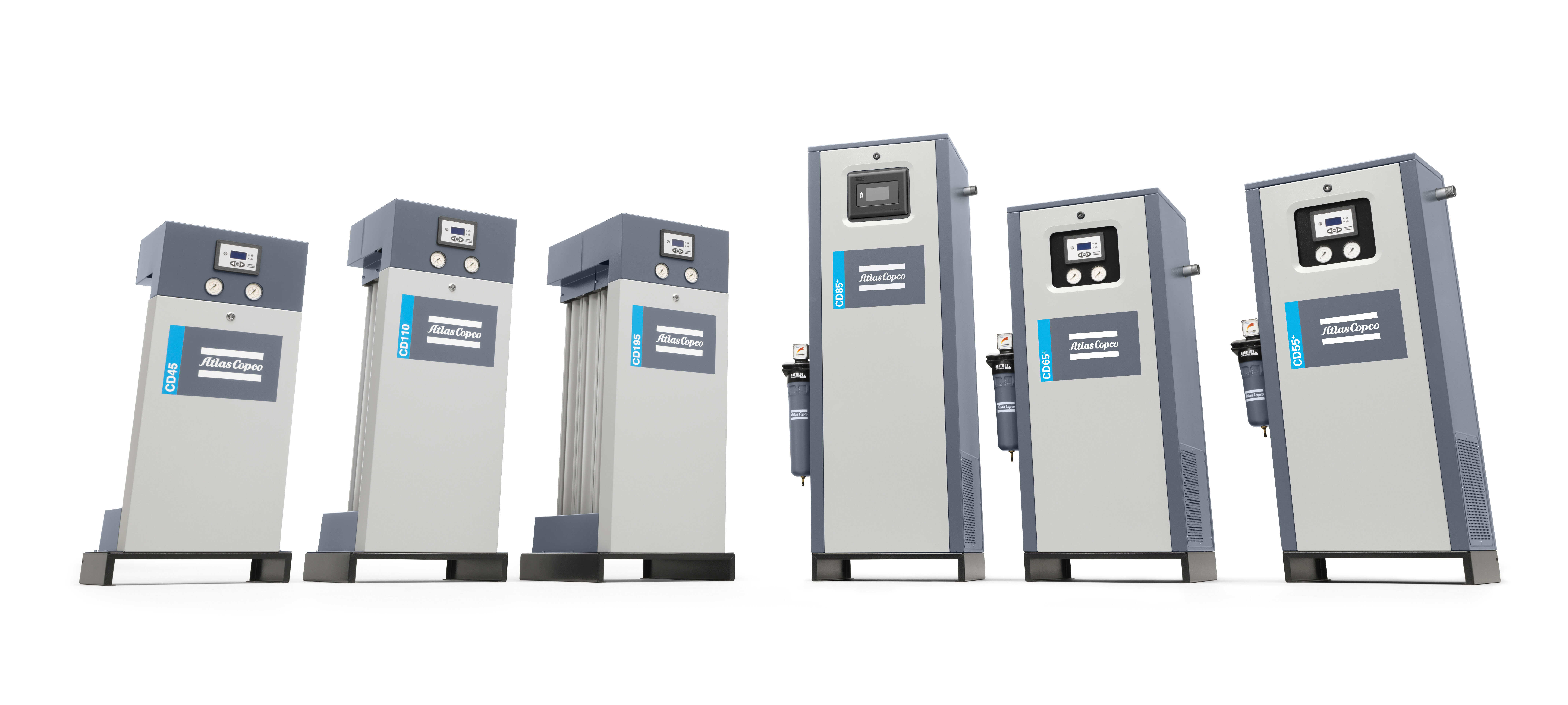

    Heatless Desiccant Dryer New CD+ Cerades™

  • Atlas Copco technology desiccant solid block Cerades™.
  • -20°C, -40°C, and -70°C dew point.
  • Capacity ranging from 25 to 335 l/s.
  • Exhaust air 16% to 19%.
  • Electronikon® Touch control module.
  • "Plug and Play" with silencers and filters.
  • Quick and easy maintenance with Cerades™ blocks.
  • Optional PDP control.
